What is a sprinkler fire suppression system and how does it work?
04.05.2025
A sprinkler fire suppression system is one of the most reliable means of automatic fire response, widely used around the world. In this article, we’ll take a closer look at what this system is, how it works, the types available, and the main stages of its design and installation.
What is a sprinkler fire suppression system?
A sprinkler fire suppression system is an automated complex designed to detect a fire at an early stage and immediately localize it. The fire is contained by spraying water through special nozzles installed in the ceiling of the premises.
One of the key advantages of a sprinkler system is that it operates automatically — without human involvement. Therefore, even a minor ignition can be quickly detected and suppressed before causing significant damage.
Sprinkler systems are widely used in a variety of facilities, including residential buildings, office spaces, shopping centers, hospitals, industrial sites, and warehouses. These systems are used in accordance with international fire safety standards, as they have been proven to reduce fire spread and damage even before fire services arrive.
Types of sprinkler fire suppression systems
Depending on the extinguishing agent used, there are different types of sprinkler fire suppression systems:
- Water sprinkler systems
- Foam sprinkler systems
- Gas sprinkler systems
Despite the variety, water-based sprinkler systems remain the most popular and classic option. They are simple, effective, and relatively inexpensive to maintain. The system operates continuously and automatically, making it highly reliable.
How does a sprinkler fire suppression system work?
Movies often show people triggering sprinkler systems with cigarette smoke or burning paper. This is a myth — the system doesn’t work that way and cannot be activated like this.

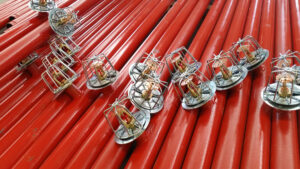

The core principle of a sprinkler system is heat detection, not smoke or flame. Each sprinkler head contains a heat-sensitive element that breaks at a certain temperature — typically 68°C or 93°C. When this element bursts, it triggers a pressurized release of water in a spray pattern.
The system operates locally — only the sprinkler head near the heat source activates. This helps prevent unnecessary water discharge and damage during fire suppression.
Water is delivered through a pipe system connected to a reservoir or an external water supply. Pump stations are often used to maintain constant pressure. Systems may be “wet” (pipes already filled with water) or “dry” (pipes filled with air until activation).
Key advantages of a sprinkler fire suppression system
- Automatic operation
The system activates without human intervention, responding to a rise in temperature in a specific area. This ensures timely, immediate response and early fire containment.
- Localized suppression
Only the sprinkler heads in the affected zone activate, which helps reduce unnecessary water damage during suppression and minimizes the use of extinguishing agents.
- Fire suppression efficiency
The system quickly isolates the fire source, allowing the flames to be subdued even before firefighters arrive.
- Reliability and longevity
A sprinkler fire suppression system has a service life of over 25 years. It is also simple to maintain and only requires annual inspections.
- Versatility of Use
The system is well-suited for various types of facilities: residential, industrial, commercial, and warehouse buildings. A wide range of sprinkler types (concealed, decorative, vandal-resistant, etc.) also makes sprinkler systems a good choice in terms of design and aesthetics.
- Integration with Other Safety Systems
The sprinkler system can operate in conjunction with fire alarms, ventilation, and smoke extraction systems.
How to Choose a Sprinkler Fire Suppression System
The choice of sprinkler system depends on the type of facility, its area, ceiling height, presence of combustible materials, and fire safety regulations. For example, warehouses storing flammable materials require systems with higher pressure and specialized sprinkler heads for more intensive water distribution.
It’s important to consider climate conditions. In cold climates, “dry” systems are often used — water only enters the pipes upon activation, which prevents freezing. Aesthetic considerations also matter — concealed sprinkler heads are available, blending seamlessly into interiors.
When selecting a system, attention should also be paid to equipment certification, manufacturer reputation, and the availability of technical support and warranty services. Consulting with professionals is a mandatory step before design begins.
Sprinkler System Design Process
Initial Data Collection
- Site analysis: building type, area, ceiling height, layout
- Determining fire hazard category according to standards (DBN, SNiP, NFPA)
- Reviewing existing engineering systems (water supply, electricity)
- Considering operational features (presence of flammable materials, personnel access, etc.)
System Type Selection
- Determining if the system should be wet, dry, pre-action (deluge), foam, or gas
- Considering climate to avoid pipe freezing
- Choosing sprinkler head types (open, closed, decorative, high-temperature, etc.)
Hydraulic Calculations
- Calculating required pressure and water flow
- Determining number and placement of sprinkler heads
- Selecting pipe diameters and pump equipment
- Estimating tank volume (for autonomous water supply)
Drawing and Diagram Creation
- Layout of pipes, sprinklers, valves, pumps
- Cross-sections, isometric views, installation diagrams
- Pipe routing instructions (above/below ceilings, through walls/floors)
- Equipment and materials specifications
Coordination and Review
- Preparing technical specifications and design notes
- Submitting the project for review by fire safety authorities
- Making revisions based on feedback, if necessary
Installation Documentation Preparation
- Final construction drawings and installation manuals
- Work schedules and material lists
- Commissioning and maintenance instructions
Sprinkler System Installation
Sprinkler system installation is carried out in accordance with the approved design and installation standards. Work begins with pipe installation, pump setup, connection to a water supply, and sprinkler head placement as per the design.
Next, the system is tested: pressure levels, head operation, and system integrity are verified. Trial runs are typically performed using pressurized water or air. A key step is commissioning the system with the proper documentation.
After installation, the owner must ensure regular maintenance — including pressure checks, head condition inspections, filter cleaning, etc. Only systematic upkeep can guarantee the long-term reliability and efficiency of a sprinkler fire suppression system.
